Disse kan kombineres med Zeiss Hunting App.
Produsentens egen omtale:

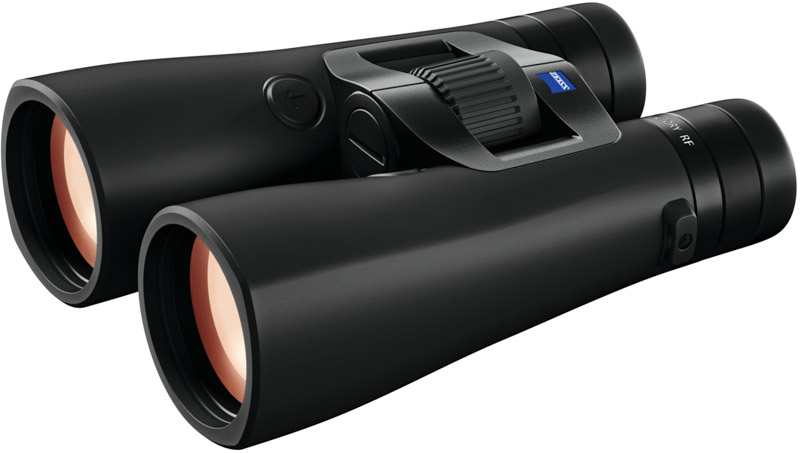

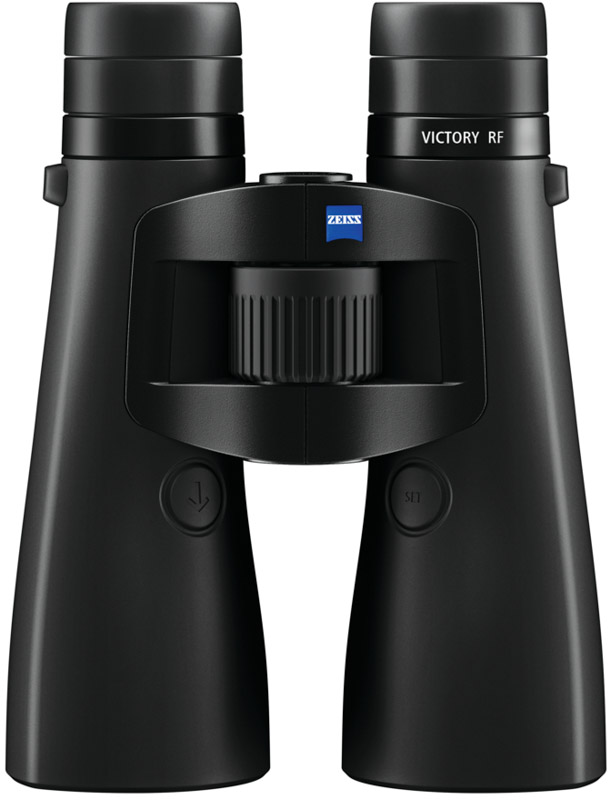

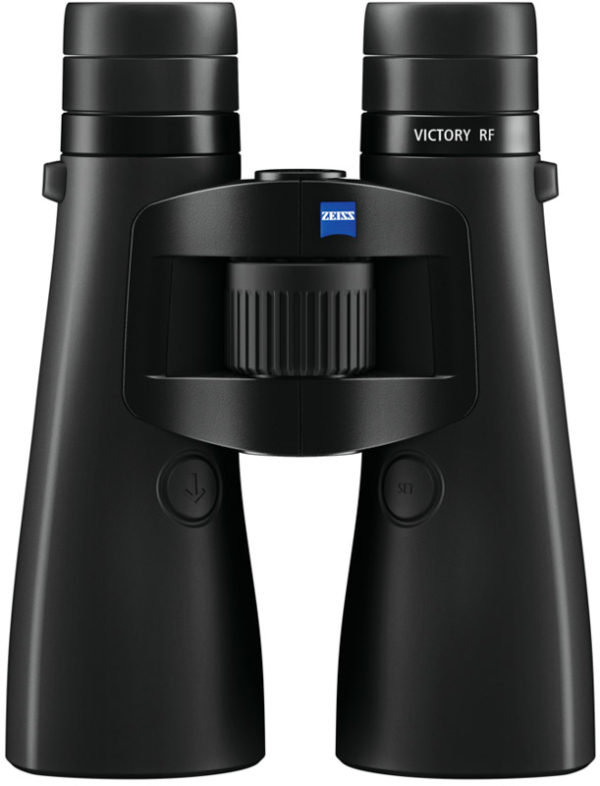

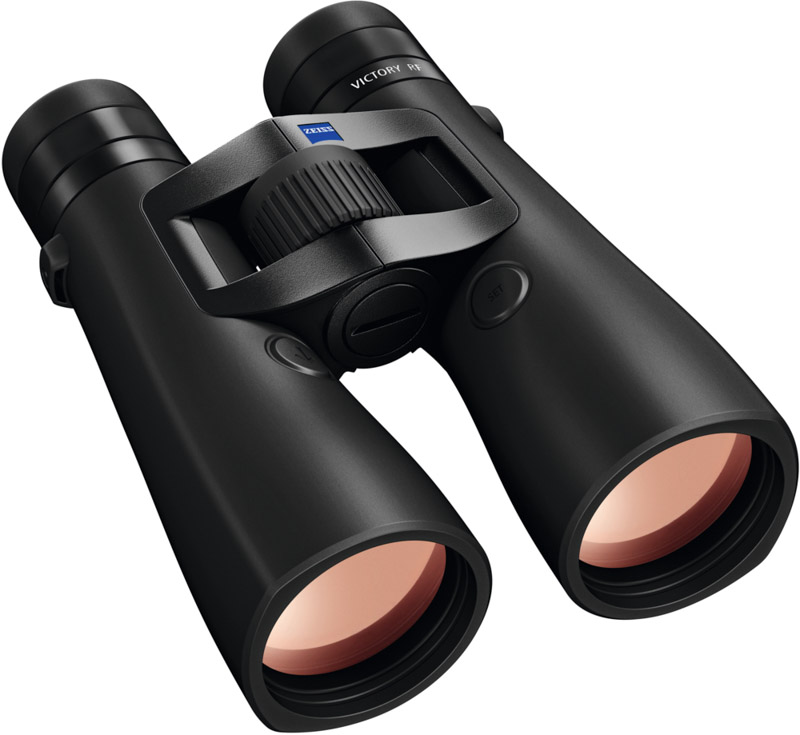

With the Victory RF, ZEISS presents a new (premium) binocular with laser rangefinder, a ballistic information system called BIS II and Bluetooth connectivity, especially aimed at hunters and for safe shots at all distances and situations.
The laser rangefinder delivers all relevant data within a second. With a measuring distance up to 2.300 metres, the innovative BIS calculate the correct holdover by using environmental sensors for angle, temperature and air-pressure. Thanks to the Bluetooth function it is possible to import personal ballistic data from the ZEISS Hunting App to the Victory RF.
Complementing the modern, conventional design, the new Victory RF relies on particular ergonomics: the double-link-bridge, the large focusing wheel with «comfort-focus-concept» and unnecessary gadgets, which hinder a comfortable observation experience.
The high-performance optics ensure brilliant, bright and pin sharp images, particularly in twilight conditions, protected by a robust magnesium housing.
Victory RF 8×42 and 10×42 primarily made for daylight applications and Victory RF 8×54 and 10×54 suitable for twilight situations.
| Magnification | 10x |
| Effective lens diameter | 54 mm |
| Exit pupil diameter | 5,4 mm |
| Twilight factor | 23,2 |
| Field of view | 110 m |
| Subjective angle of view | 63° Ww |
| Close-up setting limit | 3,5 m |
| Diopter adjustment range | +/- 3 dpt. |
| Eye relief | 14 mm |
| Pupil distance | 58,5 – 76mm |
| Lens type | FL |
| Prism system | Abbe- König |
| Coating | LotuTec®/ T* |
| Nitrogen filling | ja |
| Waterproof | 400 mbar |
| Operating temperature1 | -25/+63°C |
| Length | 195 mm |
| Width with an eye spacing of 65 mm | 136 mm |
| Weight | 1.115 g |
| Measuring range | 15 – 2.300 m |
| Measuring accuracy2 | 1 to 600/ 0,5% over 600 m |
| Measuring duration | <0,3 Sec. |
| Laser wavelength | 905 nm |
| Laser beam divergence | 1,6 x 0,5 mrad |
| Battery | 1 x 3V Type CR 2 |
| Battery life at +20°C | >2.500x |
