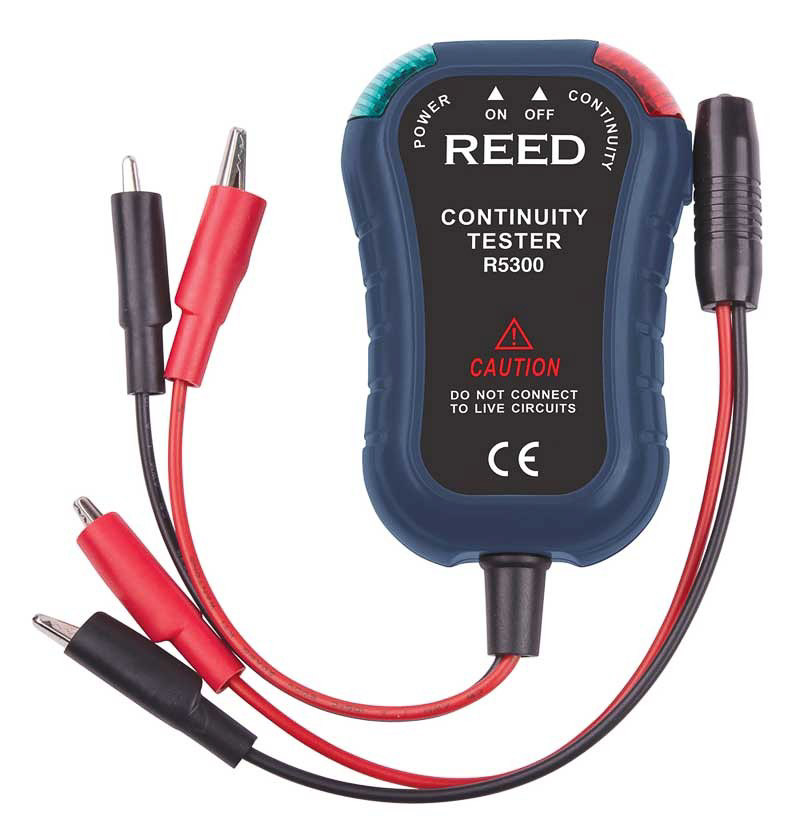

REED R5300 Continuity Tester

REED R5300 Continuity Tester. Kontakttester sjekker for brudd på kabler på opp til 3000 meters lengde. Sjekker også polaritet.

kr 446

Ikke på lager, kan bestilles

Produktnummer: 770005 Kategori:
EAN: 800837002518

Lightweight and compact size allows for easy one person operation.

REED R5300 Offers
This continuity tester is capable of checking circuits for continuity and identifying cables and wires up to 10,000 feet (3,000 meters) in length. Bright visual (bi-color LEDs) and loud audible (beeper) indicators allow wire ends to be tested in noisy environments. The R5300 is used by professional electricians, alarm/cable installers and in home audio installations.

Features
– Local and remote continuity tester
– Lightweight design, connect alligator clips and the instrument suspends from wire/cable
– Visual (flashing bi-color LEDs) and audible (pulsating beeper) indicators
– Probe flashes green or red to indicate polarity
– Remote probe allows for one person operation
– Capable of sending signal on cable/wire runs up to 10,000 ft (3000m)
– Includes battery

What’s included with the REED R5300
– R5300 Continuity Tester

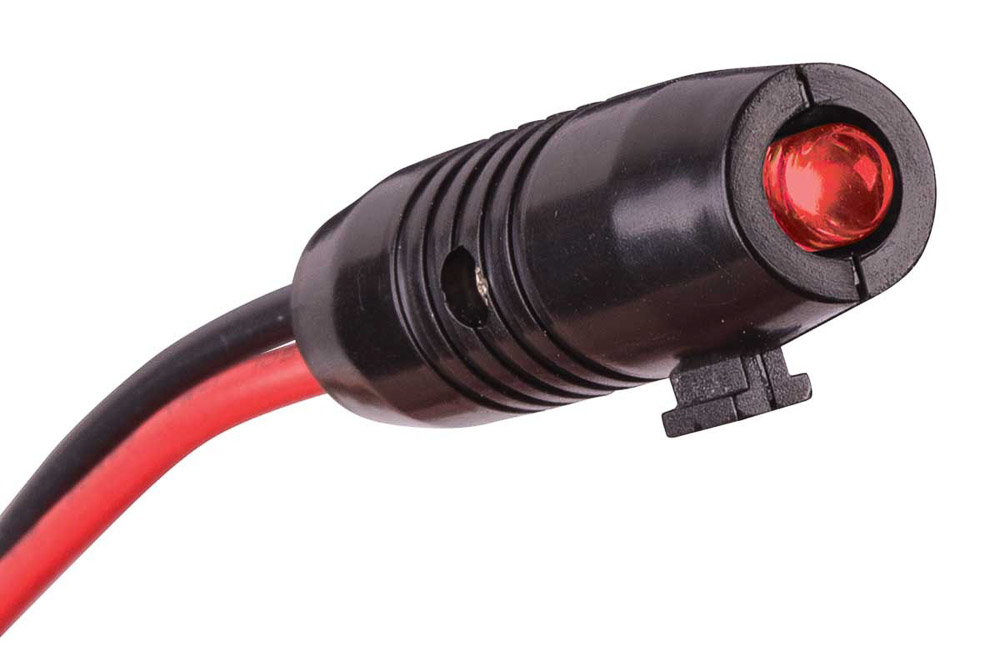

– Remote Probe
– Battery

Wire Verification Distance 10,000 feet (3000 meters)
Minimum Wire Size 26 gauge
Power Supply 9V Battery
Product Certifications CE
Visual Indicator Yes (Green and Red LEDs)
Audible Indicator Yes (Pulsating Beeper, approx. 85 dB)
Fuse 0.5A/250V
Continuity Confirmation Equal to or less than 2.0 K Ohms
Operating Temperature 14 to 113°F (-10 to 45°C)
Operating Humidity 0 to 85%
Storage Temperature 14 to 122°F (-10 to 50°C)
Dimensions 4.5 x 3 x 1.1″ (115 x 75 x 29mm)
Weight 3.9oz (111g)
