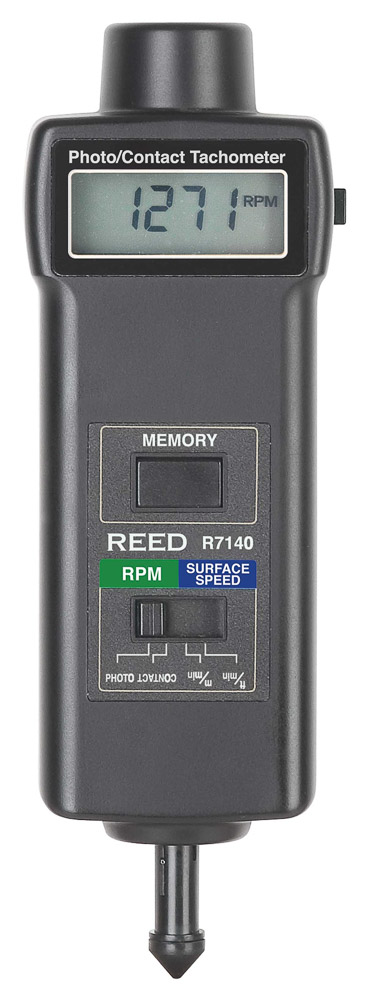

REED R7140 Combination Contact / Photo Tachometer

REED R7140 Combination Contact / Photo Tachometer. Turtelleren har både muligheten til å måle turtall (omdreininger per minutt) i rotasjonsutstyr og overflatehastighet m/min (meter per minutt) / ft/min (fot per minutt) med medfølgende kontaktadaptere.

kr 4 646

Ikke på lager, kan bestilles

Produktnummer: 770088 Kategori:
EAN: 800837000668

Den bruker synlig lys for målinger uten kontakt for å lese opp til 300 mm fra ethvert mål. R7140 har et slitesterkt ABS-plasthus for å sikre mange års vedlikeholdsfri ytelse.

Dual function tachometer features the ability to measure RPM with non-contact (visible light) and contact (ft/min / m/min) measurements quickly and accurately.

REED R7140 Offers
This tachometer features both the ability to measure RPM (revolutions per minute) in rotational equipment and surface speed m/min (meter per minute) / ft/min (feet per minute) with included contact adapters. The R7140 uses visible light for non-contact measurements to read up to 12″ (300mm) from any target. The R7140 features a durable ABS plastic housing to assure years of maintenance free performance.

Features
– Dual function unit with both contact and non-contact capabilities
– Provides fast and accurate RPM measurements of rotating objects and surface speed measurements m/min (meter per min) and ft/min (feet per min)
– Internal memory holds last reading for 5 mins and recalls min/max and last value
– LCD Display reverses depending on measurement mode

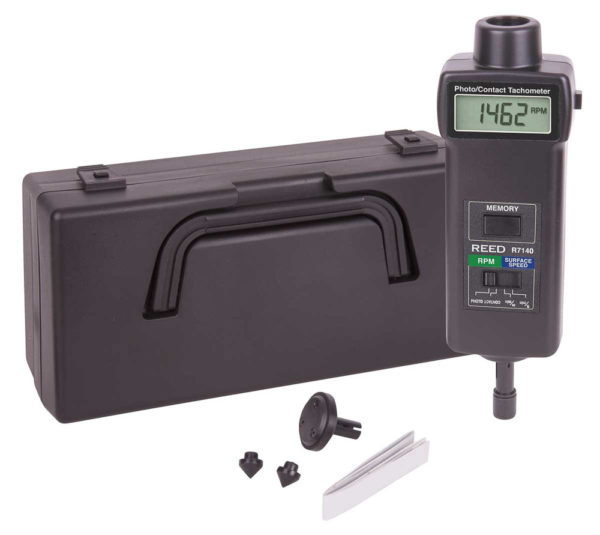

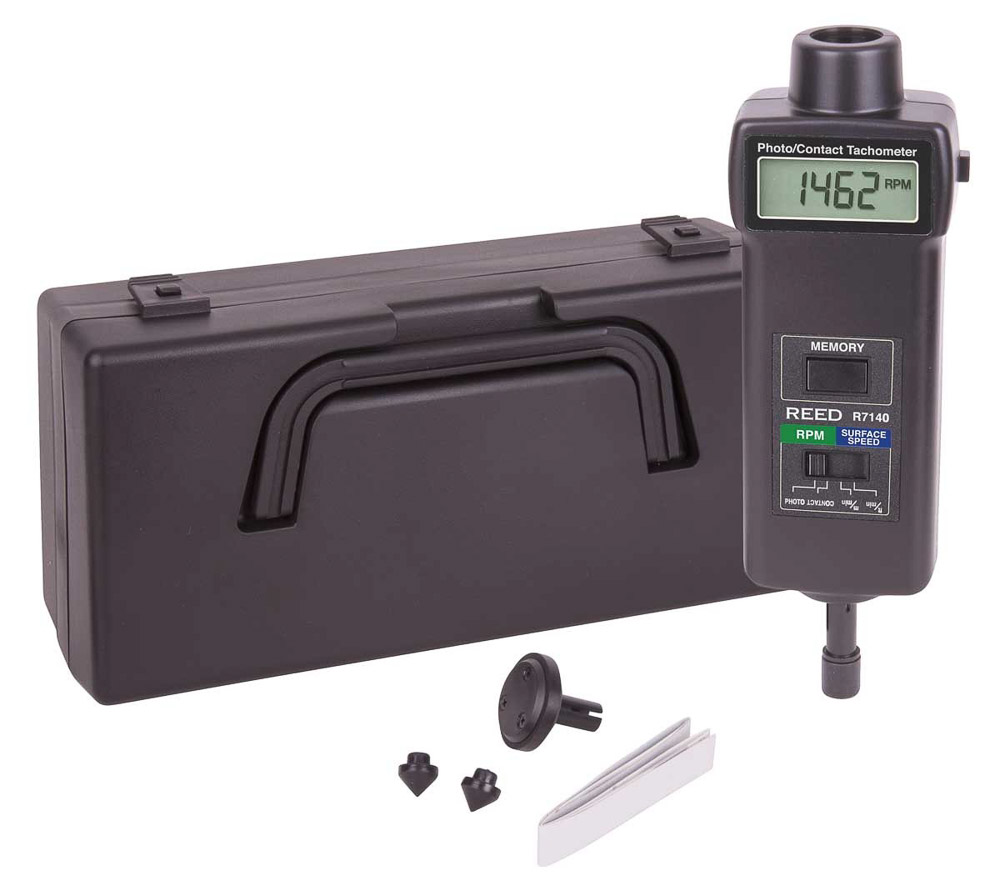

What’s included with the REED R7140
– Photo / Contact Tachometer
– Reflective Tape
– Large and Small Cone Tip Adapters
– Funnel Adapter
– Wheel Adapter
– Batteries
– Hard Carrying Case

RPM Range (Contact) 0.5 to 19,999
RPM Range (Photo) 5 to 99,999
Surface Speed Range  0.05 to 1,999.9 m/min
0.2 to 6,560 ft/min
Resolution Photo: 0.1 RPM (≤999.9) / 1 RPM (>1000)
Contact: 0.1 RPM (≤999.9) / 1 RPM (>1000)
Surface: 0.1 m/min (≤99.99) / 0.1 ft/min (≤99.99) / 1 ft/min (>1000)
Basic Accuracy ±(0.05% + 1 dgt.)
General Specifications
Visible Indicator Yes (Light)
Target Distance 1.0ft (300mm) (Photo)
Response Time <1 sec
Sampling Time Photo: 1 sec (over 60 RPM)
Contact: 1 sec (over 6 RPM)
Display Size/Type 5 Digit LCD Display
Auto shut-off Yes
Internal Memory Max, Min and Last
Low Battery Indicator Yes
Power Supply 4 x AA Batteries
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity 10-90%
Dimensions 8.5 x 2.6 x 1.5″ (215 x 65 x 38 mm)
Weight 10.6oz (300g)
