REED R7900 Ultrasonic Thickness Gauge, 15.7″ (400mm)

REED R7900 Ultrasonic Thickness Gauge, 400mm. Denne ultrasoniske tykkelsesmåleren er i stand til å måle tykkelsen på et bredt utvalg av ultralydledende materialer. R7900 har justerbare høye/lave alarmer og internt minne som kan lagre opptil 500 målinger.

kr 13 768

Ikke på lager, kan bestilles

Produktnummer: 770082 Kategori:
EAN: 800837001443

Internal memory capable or storing up to 500 readings, user adjustable high/low alarms.

REED R7900 Offers

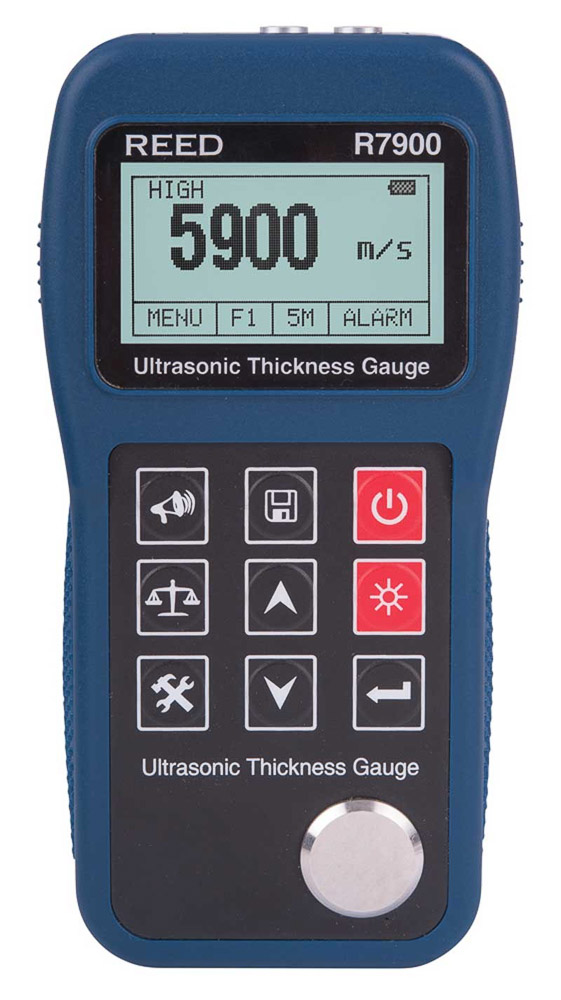

This ultrasonic thickness gauge has a large backlit LCD display and is capable of measuring the thickness of a wide variety of ultrasonic conductive materials. The R7900 features user adjustable high/low alarms and internal memory capable of storing up to 500 measurements.

Features
– Measures a wide range of material including; metals, plastic, ceramics, composites, epoxies, glass, and other ultrasonic conductive materials
– Large, easy-to-read backlit LCD display
– User selectable unit of measure (in/mm)
– Internal memory stores up to 500 measurements
– Displays sound velocity at the touch of a button
– Zero adjustment button
– User adjustable High/Low alarms
– Built-in two-point calibration function
– Auto sleep, shut off and low battery indicator

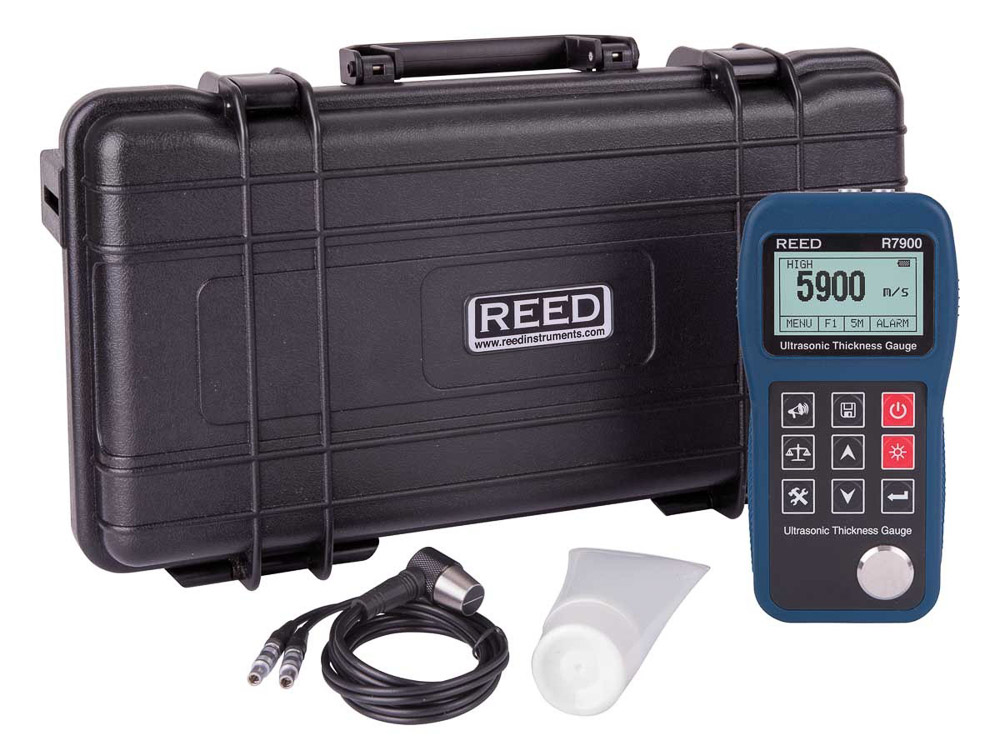

What’s included with the REED R7900
– Ultrasonic Thickness Gauge
– Ultrasonic Couplant Gel
– Probe
– Hard Carrying Case
– Batteries

Measuring Range 0.03 to 15.7″ (0.65 to 400mm)
Accuracy ±0.04mm (< 10mm)
±(0.1% rdg.+ 0.04mm) (< 100mm)
±(0.3% rdg.) (> 100mm)
Resolution 0.01mm or 0.1mm (< 100mm)
0.1mm (>100mm)
Velocity Range 1000 to 9999 m/s (0.039 to 0.394 in/µs)
Compatible Materials Ultrasonic conductive materials (ie. metals, plastics, ceramics, composites, epoxies, glass)
Sampling Time Less than 1 sec.
Display 4-Digit, LCD
Backlit Display Yes
Probe Length 3′ (36″)
Internal Memory Yes (up to 500 readings, 5 files up to 100 each)
Low Battery Indicator Yes
Power Supply 2 AA Batteries
Battery Life Approx. 100 hours (Alkaline)
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range 20 to 80%
Dimensions 5.9 x 2.9 x 1.3″ (150 x 74 x 32mm)
Weight 8.4oz (238g)
