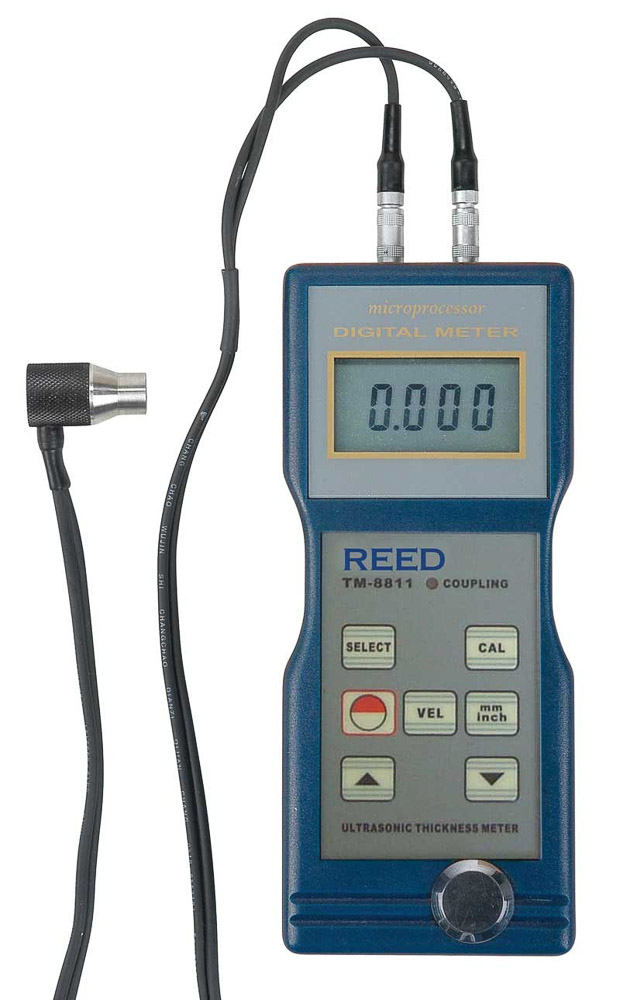

REED TM-8811 Ultrasonic Thickness Gauge, 7.9″ (200mm)

REED TM-8811 Ultrasonic Thickness Gauge 200mm har en lettlest LCD-skjerm og er designet for å måle tykkelsen på 10 forhåndsinnstilte materialer.

kr 5 775

Ikke på lager, kan bestilles

Produktnummer: 770084 Kategori:
EAN: 800837002266

Quick responding and high accuracy with large LCD display.

REED TM-8811 Offers
This ultrasonic thickness gauge has a large easy-to-read LCD display and is designed to measure the thickness of 10 preset materials. The TM-8811 features a built-in calibration function, low battery indicator and includes couplant.

Features
– Measures the thickness of steel, cast iron, aluminum, red copper, zinc, quartz glass, polyethylene, PVC, grey cast iron and nodular cast iron
– Large, easy-to-read LCD display
– Displays sound velocity at the touch of a button
– Automatic material calibration
– User selectable unit of measure (in/mm)
– Low battery indicator

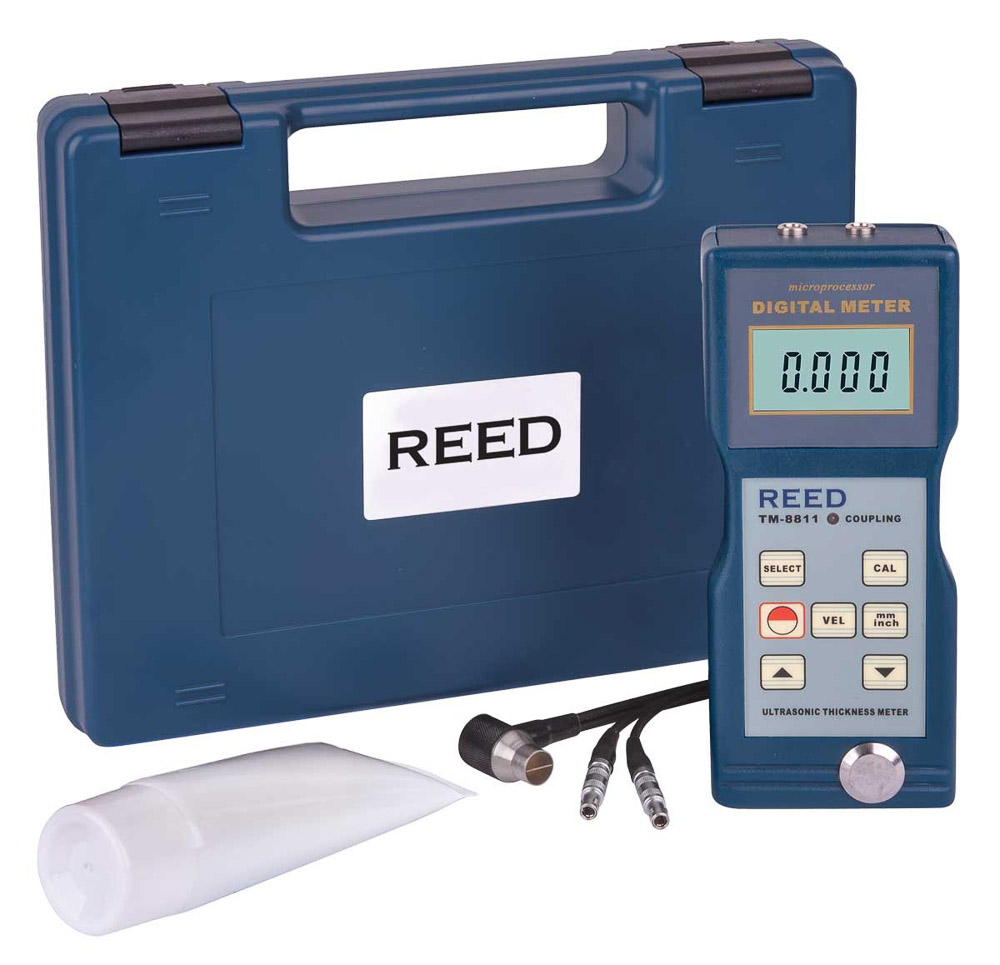

What’s included with the REED TM-8811
– Ultrasonic Thickness Gauge
– Ultrasonic Couplant Gel
– Probe
– Hard Carrying Case
– Batteries

Measuring Range 0.05 to 7.9″ (1.5 to 200mm)
Accuracy ±(0.5% + 0.1mm)
Resolution 0.004″/0.1mm
Velocity Range 500 to 9000 m/s
Compatible Materials Steel, cast iron, aluminum, red copper, zinc, quartz glass, polyethylene, PVC, grey cast iron and nodular cast iron
Sampling Time Less than 1 sec.
Display 4-Digit, LCD
Probe Length 3′ (36″)
Low Battery Indicator Yes
Power Supply 4 AA Batteries
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range 20 to 80%
Dimensions 6.3 x 2.7 x 1.25″ (161 x 69 x 32mm)
Weight 9oz (258g)
